$1,849.00

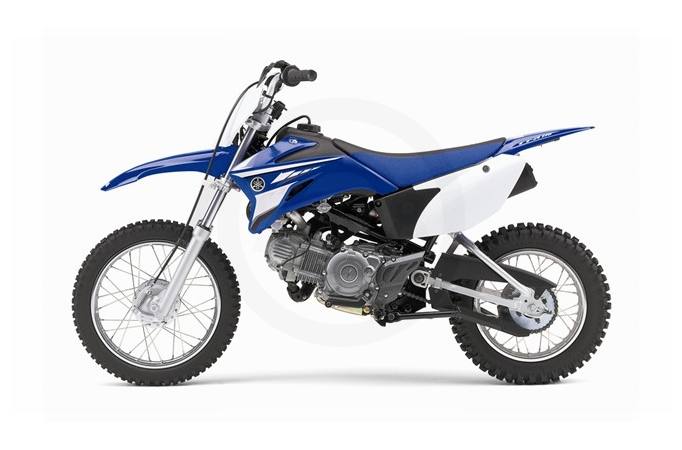

2008 Yamaha TT-R110E
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Team Yamaha Blue/White
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

BIG FUN MADE EASY.


All-new and ready to rip, the TT-R110E is a chip right off the YZ450F block - complete with a nearly indestructible four-stroke engine, class-exclusive four-speed automatic gearbox, electric start and YZ-inspired styling.

  • Convenient electric starter for effortless starting.
  • Big fun for the whole family in an all-new package, the YZ-styled four-stroke-powered TT-R110 begs to be ridden by everyone from bigger kids to adults.
  • A seat height of only 26.4 inches makes this one accessible to most riders, but 7.1 inches of ground clearance and great suspension at both ends mean it can go places.
  • Class-exclusive four-speed auto-clutch transmission has an easily accessible gear for nearly any terrain.
Engine
  • Torquey/powerful 110cc air-cooled SOHC four-stroke powerplant is tuned for maximum off-road performance in a wide range of trail conditions.
  • Compact hemispherical combustion chamber with 9.3:1 compression produces max torque at 4000 rpm, max horsepower at 7500 rpm.
  • Four-speed gearbox with automatic clutch has the right gear for wherever you ride.
  • Convenient electric starter for effortless starting.
  • CDI ignition system is ultra-reliable and never needs maintenance.
  • Automatic cam chain tensioner means minimal maintenance and longer engine life.
  • Easy-access, tool-free air filter adds extra convenience during maintenance.
  • Lightweight exhaust system features quiet, USFS-approved spark arrestor.
Chassis/Suspension
  • Steel backbone frame ties steering head and swingarm pivot together via a straight line, with the engine mounted at three places for optimum strength and high ground clearance.
  • 31mm fork with high-tech internals including a damper valve with oil lock provides excellent damping, great bottoming resistance and 4.5 inches of smooth travel.
  • Monocross rear suspension pivoting on a strong, 12mm shaft, along with a gusseted steel swingarm, provide excellent rear wheel control through 4.3 inches of travel.
  • Die-cast aluminum top triple clamp helps provide light, precise handling and looks great, too.
  • 26.4-inch seat height and 7.1 inches of ground clearance help inspire confident performance on rugged trails.
  • Front and rear drum brakes deliver strong, dependable stopping power.
  • 14-inch front and 12-inch rear wheels inspire great rider confidence by keeping the seat low and the steering light.
  • Knobby tires offer superb grip and exceptional wear.
Additional Features
  • Long, YZ-style seat is low, comfortable and allows easy rider movement.
  • Team Yamaha–inspired colors, graphics and front and side number plates create styling similar to larger YZ lineup.
  • Large, folding, cleated footpegs provide excellent footing even in wet or muddy conditions.
  • Key-type ignition switch deters unauthorized riding.
Engine Specificaions
  • Type: 110cc air-cooled 4-stroke, SOHC
  • Bore x Stroke: 51.0mm x 54.0mm
  • Compression Ratio: 9.3:1
  • Carburetion: VM16 x 1
  • Ignition: CDI
  • Transmission: Constant-mesh 4-speed/wet, multiple disc
  • Final Drive: Chain drive
Chassis Specificaions
  • Suspension/Front: Telescopic fork, coil spring/oil damper, 4.5-in travel
  • Suspension/Rear: Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in travel
  • Brakes/Front: 95mm drum
  • Brakes/Rear: 110mm drum
  • Tires/Front: 2.50-14-4PR
  • Tires/Rear: 3.00-12-4PR
Dimensions
  • Length: 61.6 in
  • Width: 26.8 in
  • Height: 36.3 in
  • Seat Height: 26.4 in
  • Wheelbase: 42.5 in
  • Ground Clearance: 7.1 in
  • Dry Weight: 152 lb
  • Fuel Capacity: 1.0 gal
Warranty
  • 90 Day (Limited Factory Warranty)
Color
  • Team Yamaha Blue/White
NOTES:

Price and specifications subject to change without notice. Please read your Owner's Manual and all labels before operation.


Specifications

Engine
Engine Type 4-stroke, SOHC
Displacement 110cc
Bore and Stroke 51.0mm x 54.0mm
Cooling Air-cooled
Compression Ratio 9.3:1
Fuel System Carburetion: VM16 x 1
Ignition CDI
Chassis
Front Suspension Telescopic fork, coil spring/oil damper, 4.5-in travel
Front Brakes 95mm drum
Front Tire 2.50-14-4PR
Rear Suspension Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in travel
Rear Brakes 110mm drum
Rear Tire 3.00-12-4PR
Dimensions
Dry Weight 152 lb
Fuel Capacity 1.0 gal
Wheelbase 42.5 in
Ground Clearance 7.1 in
Seat Height 26.4 in
Transmission
Transmission Constant-mesh 4-speed/wet, multiple disc
Final Drive Chain drive
General
Colors Team Yamaha Blue/White
Warranty 90 Day (Limited Factory Warranty)

Compare Models

 Print








Year 2008
Manufacturer Yamaha
Model TT-R110E
Style Off-Road
MSRP* $1,849.00
Chassis
Front Suspension Telescopic fork, coil spring/oil damper, 4.5-in travel
Front Brakes 95mm drum
Front Tire 2.50-14-4PR
Rear Suspension Swingarm Monocross®, coil spring/gas-oil damper, 4.3-in travel
Rear Brakes 110mm drum
Rear Tire 3.00-12-4PR
Dimensions
Dry Weight 152 lb
Fuel Capacity 1.0 gal
Wheelbase 42.5 in
Ground Clearance 7.1 in
Seat Height 26.4 in
Trail
Rake
Engine
Engine Type 4-stroke, SOHC
Displacement 110cc
Bore and Stroke 51.0mm x 54.0mm
Cooling Air-cooled
Compression Ratio 9.3:1
Fuel System Carburetion: VM16 x 1
Ignition CDI
General
Colors Team Yamaha Blue/White
Warranty 90 Day (Limited Factory Warranty)
Transmission
Transmission Constant-mesh 4-speed/wet, multiple disc
Final Drive Chain drive
